TL SERIES-Raising Clamp

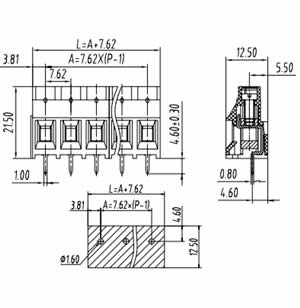

TL506V

Pitch(间距) 7.62mm
Approval(认证)
Rated voltage(电压) 300V 630V
rated current(电流) 30A 32A
wire range(线径) 26-10AWG 0.34-4.0mm² sol/str 6.0mm² sol max
PCB hole Dia(PCB直径) Φ1.6mm
Screw (螺丝) M3

Housing Material(本质材料)

Poles(级数) Model(型号)
02 TL506V-02P
.. ..
24 TL506V-24P

PS: For reference only,Prevail Specific data by Specification company provided
