BARRIER SERIES

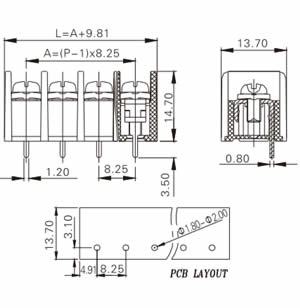

B825-01

Pitch(间距) 8.25mm
Approval(认证)
Rated voltage(电压) 300V 450V
rated current(电流) 20A
wire range(线径) 22-12AWG 1.5mm²
PCB hole Dia(PCB直径) Φ1.8-2.0mm
Screw (螺丝) M3

Housing Material(本质材料)

Poles(级数) Model(型号)
02 B825-01-02P
.. ..
12 B825-01-12P

PS: For reference only,Prevail Specific data by Specification company provided
