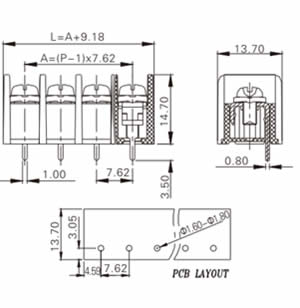

간격(Pitch) | 7.62mm | ||
인증(Approval) | |||
전압(Rated voltage) | 300V | 450V | |
전류(rated current) | 20A | ||
철사(wire range) | 22-12AWG | 1.5mm² | |
PCB 직경(PCB hole Dia) | Φ1.6-1.8mm | ||
나사 (Screw) | M3 | ||
물질의 성질(Housing Material) |
시리즈(Poles) | 모델(Model) |
02 | B762-01-0773-02P |
.. | .. |
30 | B762-01-0773-30P |
PS: For reference only,Prevail Specific data by Specification company provided
